23.02.2025 - 2022 SCOGinstrument (Win)

2022: SCOGinstrument 2.4 for Windows
Laptop as speed and course instrument on Your boat
SOG (Speed Over Ground) and COG (Course Over Ground) in a full screen Windows application.
19.07.2022 / Version 2.4: Copy position to clipboard added to settings screen.
28.06.2022 / Version 2.3: GPS-buffer errors corrected.
12.06.2022 / Version 2.2: Speedbar height error corrected.
06.06.2022 / Version 2.1: Minor graphical enhancements: Charset and compass.
28.05.2022 / Version 2.0: Multi languages file added.

SCOGinstrument README-file

SCOGinstrument 2.2 ZIP-file for installation







You have probably already all the instruments on Your boat that You want. I haven’t. My only instrument is a depth echo sounder - and a smartphone that is hard to see in sunlight.

My sailboat is an old and small one: The Swedish Maxi77, 25 feet, from 1978.

I made this small old-fashion Windows application to meet these requirements:

- Spend no (or at least little) money.

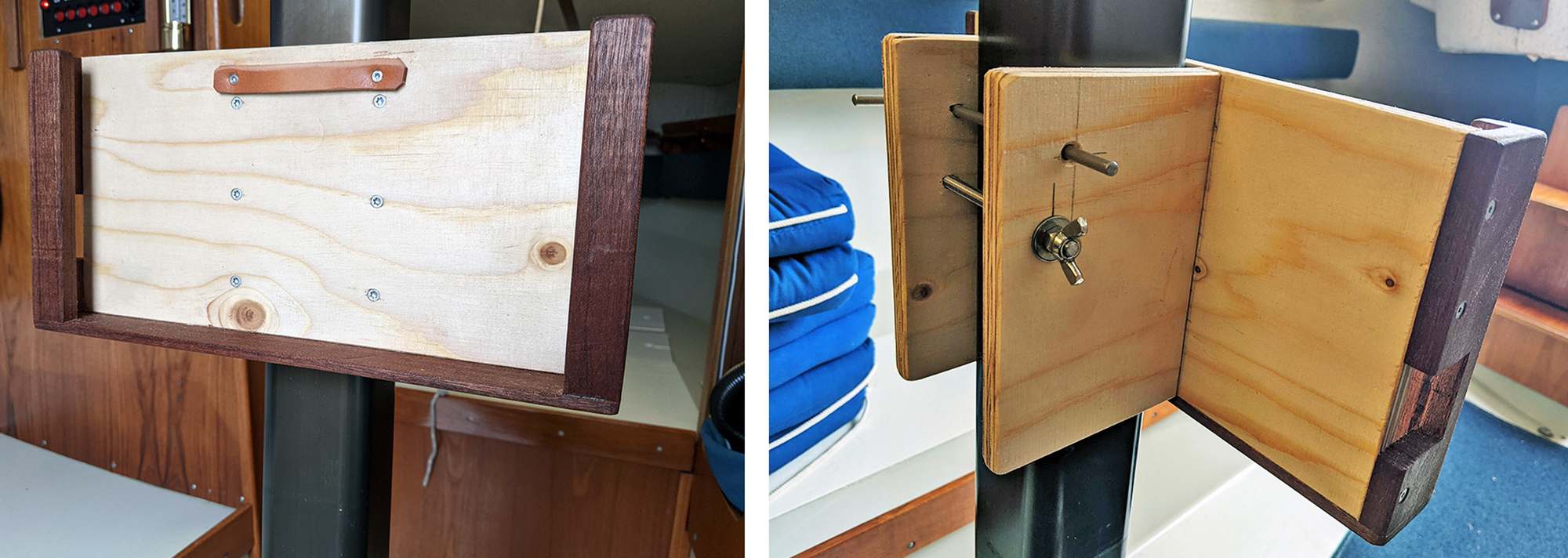

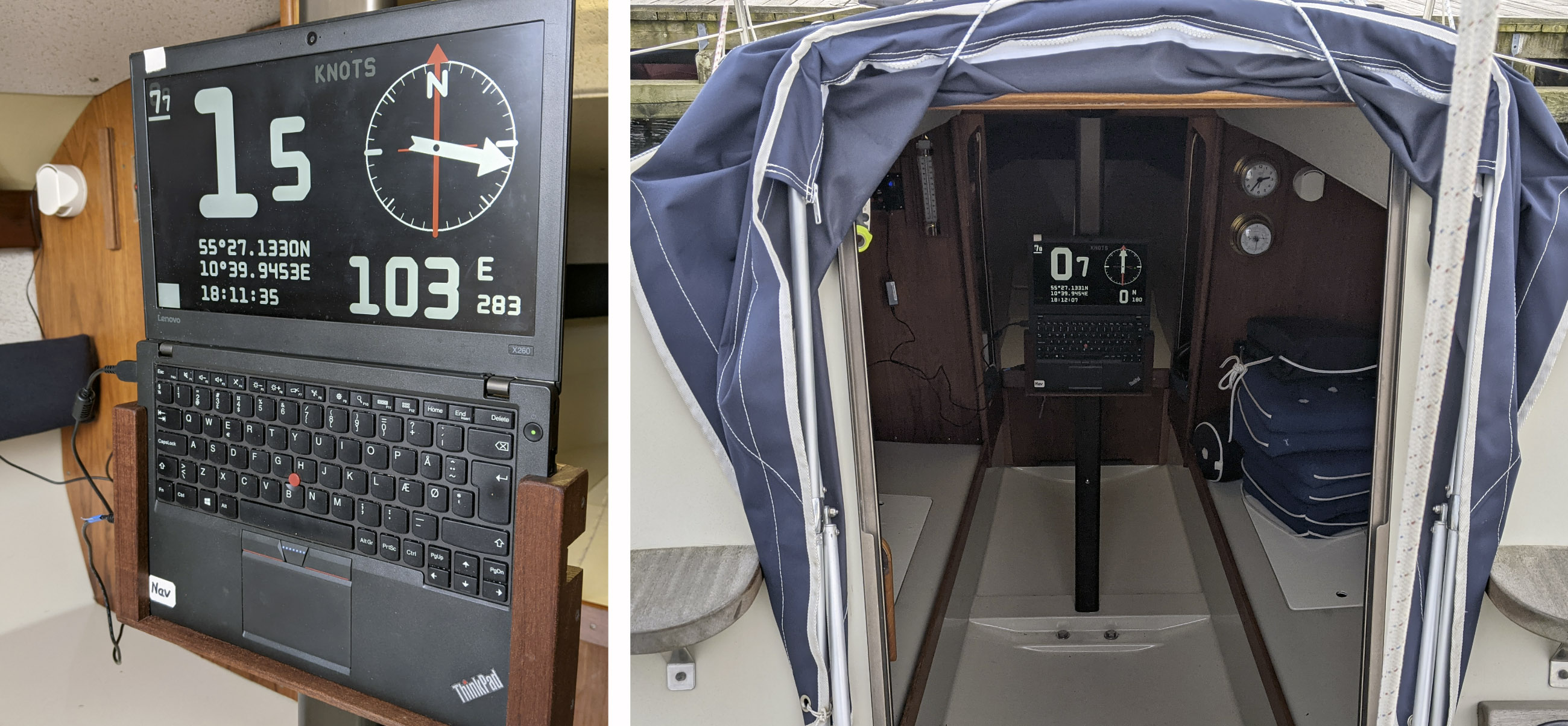

- Use one of my older laptops – placed/fixed in my boats cabin, protected against rain, seawater and direct sunlight – no big holes in the boat body!

- Use my existing GPS-receiver with USB-interface.

- Laptop screen, using big letters/numbers in full screen mode, must be visible from (almost) any position in the cockpit, sitting or standing up.




I am a genuine “hobby amateur programmer” and this software is therefore free only for non-commercial private/personal use. It comes with no kind of guarantees/warranties whatsoever, and I accept no responsibility for any malfunctions in the software - nor any adverse effects when using the software.

Still: All kinds of feedback are most welcome!

Use it purely as a supplement to good sailing and navigation practice.

BRGDS and Safe Sailing !

Christian Wang, Kerteminde, Denmark
Mail: cwangdk@gmail.dk

IMPORTANT: You will only be able to use SCOGinstrument if Your (USB/Bluetooth) GPS-receiver works with Your laptop!

SCOGinstrument README-file

SCOGinstrument 2.4 ZIP-file for installation

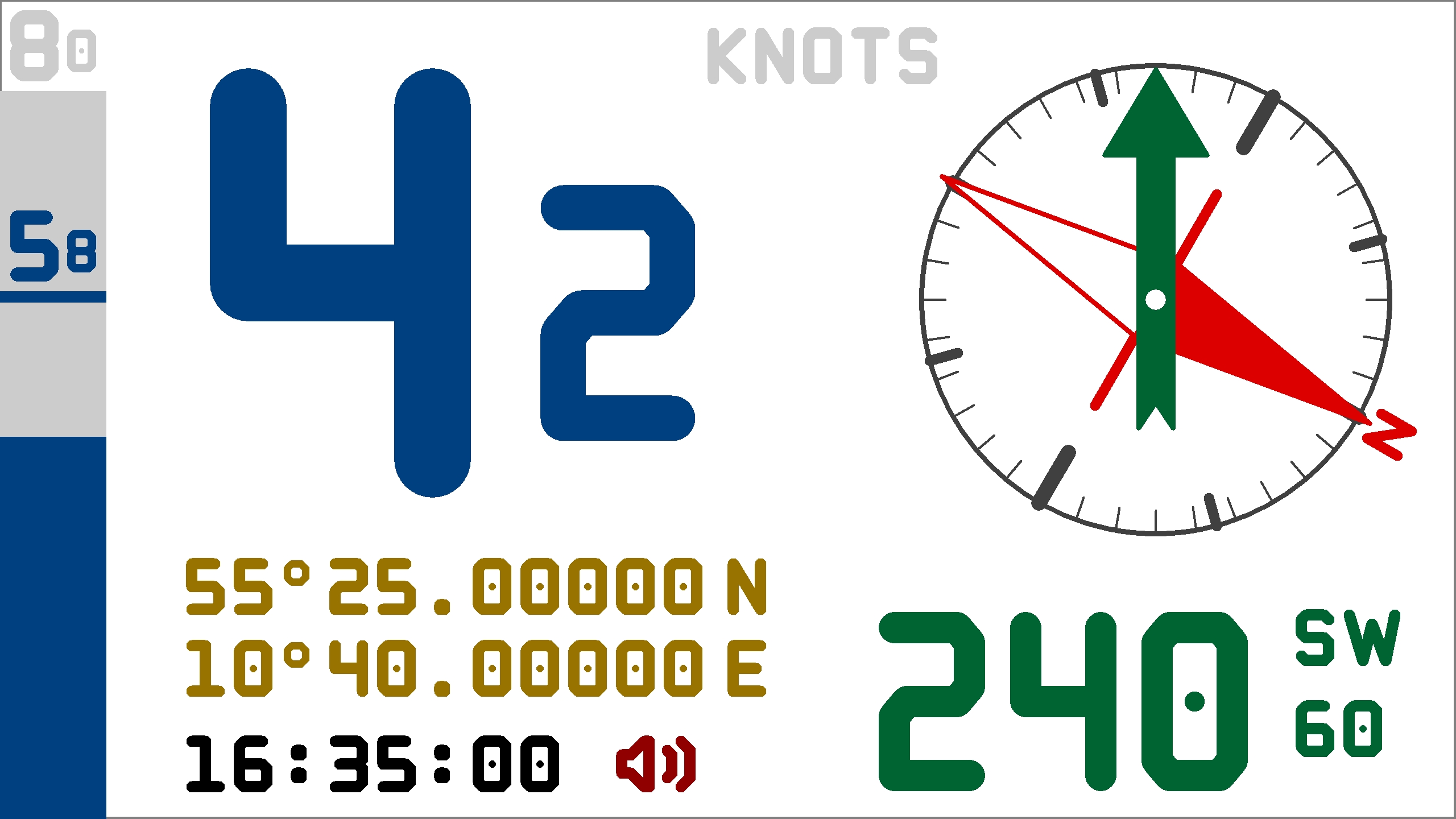

Example screenshots:


23.02.2025 - 2022 SCOGinstrument (Win)
